SSP9301
The SSP9301 is a compact 5V Buck Converter which can deliver 1A output current.
SSP9301 employs a proprietary control loop to achieve a fast transient load response. It keeps high converting efficiency in both light load and heavy load. SSP9301 is equipped with all kinds of protection, such as input over voltage protection, output short circuit protection, over current protection and over temperature protection.
SSP9301 is consists of internal power tree generator, bandgap voltage reference module, under-Voltagelockout (UVLO) module, error amplifier, protection circuitry, driver block, current sensing block and two power MOSFETs.
SSP9301 is housed in a SOT23-5 package.
SSP9312
The SSP9312 is a high frequency, synchronous, rectified,step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 2A continuous output current over a wide input supply range, with excellent load and line regulation.The SSP9312 requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.
H75XX-H
The H75XX-H# series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 40V. They are available with several fixed output voltages ranging from 1.8V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
SSP1842
SSP1842 is a built-in clock calibration-free energy metering IC, which is suitable for single-phase multi-function electricity meters, smart sockets, smart home appliances and other applications, with more cost-efficient solution.
SSP1842 integrates 2 high-precision Sigma-Delta ADC to measure current and voltage simultaneously. Reference voltage, power management and other analog circuit modules, and processing active power, current and voltage RMS electrical parameters digital signal processing circuit.
SSP1842 can measure electric parameters such as current and voltage RMS, active power, active energy, fast current RMS (for over-current protection), and waveform output and so on. SSP1842 output data through the UART/SPI interface. It is available for the smart socket, smart appliances, single-phase multi-function power meter and information requirement of data acquisition in electricity applications.
SSP1842 has a patented anti-creep design, which can be combined with reasonable external hardware design to ensure that the noise energy cannot be calculated in the energy pulse when there is no load.
SSP1840
SSP1840 is a built-in clock and calibration-free energy metering IC, suitable for single-phase multifunctional electricity meter, smart socket, smart home appliances, electric bicycle charging pile and other applications with better cost performance.
SSP1840 integrates 2 high-precision sigma-delta ADC to measure current and voltage simultaneously. Reference voltage, power management and other analog circuit modules, and processing active power, current and voltage RMS electrical parameters digital signal processing circuit.
SSP1840 can measure electric parameters such as current and voltage RMS, active power, active energy, fast current RMS (for leakage detection/over-current protection), and temperature detection, waveform output and so on. SSP1840 output data through the UART/SPI interface. It is available for the smart socket, smart appliances, single-phase multi-function power meter, electric bicycle charging pile and information requirement of data acquisition in electricity applications.
SSP1840 has a patented anti-creep design, which can be combined with reasonable external hardware design to ensure that the noise energy cannot be calculated in the energy pulse when there is no load.
SSP7805
SSP78XX is three-terminal positive regulators. One of these regulators can deliver up to 1.5A of output current. The internal limiting and thermal-shutdown features of the regulator make them essentially immune to overload. When used as a replacement for a zener diode-resistor Combination, an effective improvement in output impedance can be obtained, together with lower quiescent current.
SSP6206
SSP6206 series are a highly precise, lower consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage .
The SSP6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. The output voltage can be selected from 1.5V to 3.6V. SSP6206 series are available in SOT-23,SOT23-3 and SOT89 packages.

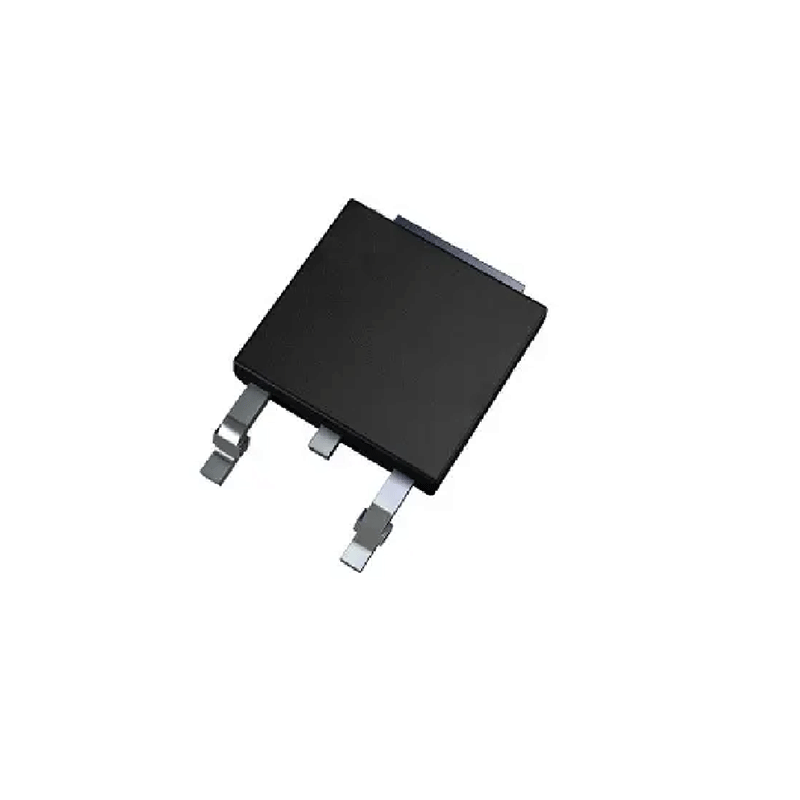

SSP78MXX
SSP78MXX is three-terminal positive regulators. One of these regulators can deliver up to 500mA of output current. The internal limiting and thermal shutdown features of the regulator make them essentially immune to overload. When used as a replacement for a zener diode-resist or Combination, an effective improvement in output impedance can be obtained,together with lower quiescent current.
SSP485
The SSP485 is a half-duplex high speed transceiver for RS-485 and RS422 communication. IC contains one driver and one receiver.
The SSP485 has a fail-safe circuit. Each driver output and receiver input is protected against ±15kV electrostatic discharge (HBM) (ESD)shocks.
The SSP485 receiver has 1/8 unit load input impedance, allows up to 256 devices can be attached to the bus. Mainly used in RS-485/RS-422 communication system.

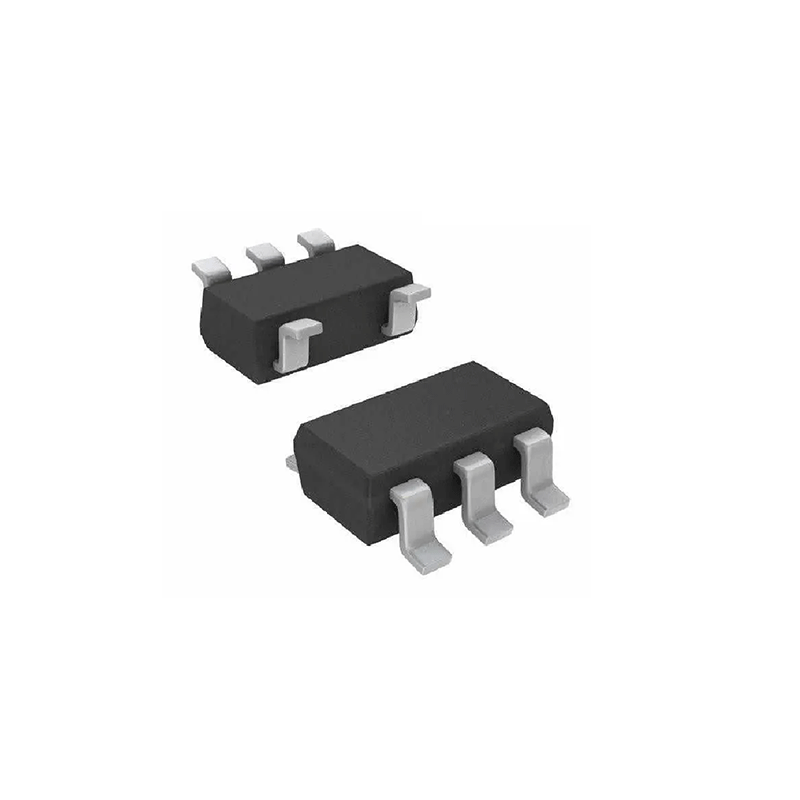

SSP7603
The SSP7603 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SSP7603 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series.
