SSP9302
The SSP9302 is a compact 5V Buck Converter which can deliver 1A output current.
SSP9302 employs a proprietary control loop to achieve a fast transient load response. It keeps high converting efficiency in both light load and heavy load. SSP9302 is equipped with all kinds of protection, such as input over voltage protection, output short circuit protection, over current protection and over temperature protection.
SSP9302 is consists of internal power tree generator, bandgap voltage reference module, under-Voltagelockout (UVLO) module, error amplifier, protection circuitry, driver block, current sensing block and two power MOSFETs.
SSP9302 is housed in a SOT23-5 package.
SSP9301
The SSP9301 is a compact 5V Buck Converter which can deliver 1A output current.
SSP9301 employs a proprietary control loop to achieve a fast transient load response. It keeps high converting efficiency in both light load and heavy load. SSP9301 is equipped with all kinds of protection, such as input over voltage protection, output short circuit protection, over current protection and over temperature protection.
SSP9301 is consists of internal power tree generator, bandgap voltage reference module, under-Voltagelockout (UVLO) module, error amplifier, protection circuitry, driver block, current sensing block and two power MOSFETs.
SSP9301 is housed in a SOT23-5 package.

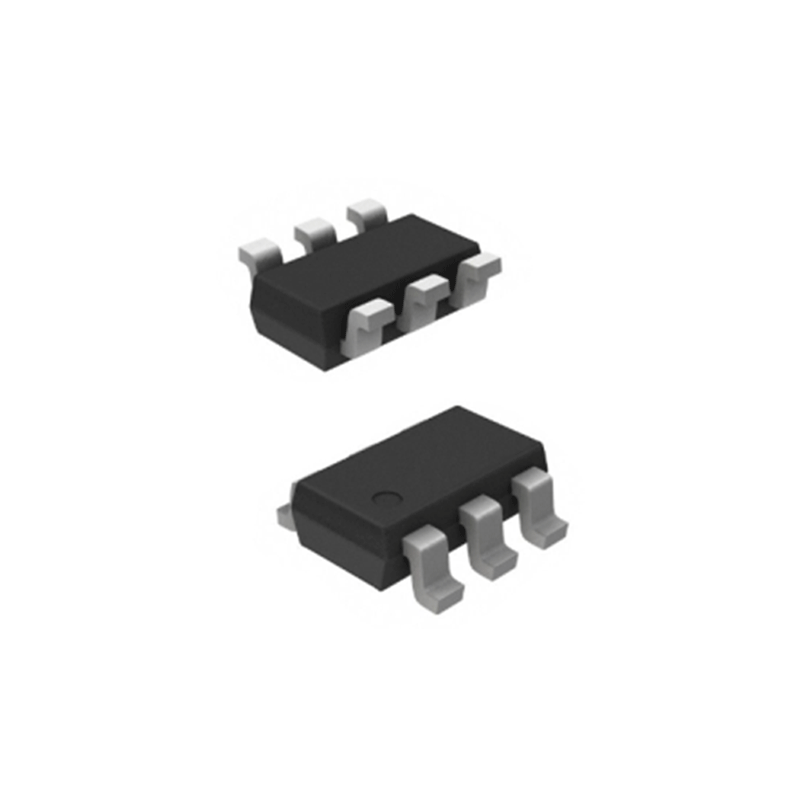

SSP9458
The SSP9458 is a monolithic, step-down, switch mode converter with a built-in power MOSFET. Capable of delivering up to 600mA of output current over a wide input supply range with excellent load and line regulation. At light loads, the regulator operates in low frequency to maintain high efficiency and low output ripple. The minimum input voltage may be as low as 4.5V and the maximum up to 60V, with even higher transient voltages. Fault condition protections include cycle-by-cycle current limiting and thermal shutdown.
The SSP9458 requires a minimal number of readily-available external components. The SSP9458 is available in a SOT23-6 package.
SSP9810
The SSP9810 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 1.2A continuous output current over a wide input supply range, with excellent load and line regulation.The SSP9810 requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.
SSP9481
The SSP9481 is a monolithic, step-down, switch-mode converter with a built-in power MOSFET. Current-mode operation provides a fast transient response and eases loop stabilization.
The wide input Voltage range (4.5V to 80V) provides high efficiency output of 1A current. Low shutdown mode quiescent current of 0.1μA is suitable for battery-powered applications.
Fail-state protection includes cycle-by-cycle current-limiting protection and thermal shutdown protection.
SSP9480
The SSP9480 is a monolithic, step-down, switch-mode converter with a built-in power MOSFET. Current-mode operation provides a fast transient response and eases loop stabilization.
The wide input Voltage range (4.5V to 80V) provides high efficiency output of 1.2A current. Low shutdown mode quiescent current of 0.1μA is suitable for battery-powered applications.
Fail-state protection includes cycle-by-cycle current-limiting protection and thermal shutdown protection.
SSP9461
The SSP9461 is a monolithic, step-down, switch-mode converter with a built-in power MOSFET. Current-mode operation provides a fast transient response and eases loop stabilization.
The wide input range(4.5V to 60V) provides high efficiency output of 1.2A current. Low shutdown mode quiescent current of 0.1μA is suitable for battery-powered applications.
Fault state protection includes Cycle by Cycle OCP and thermal shutdown protection.

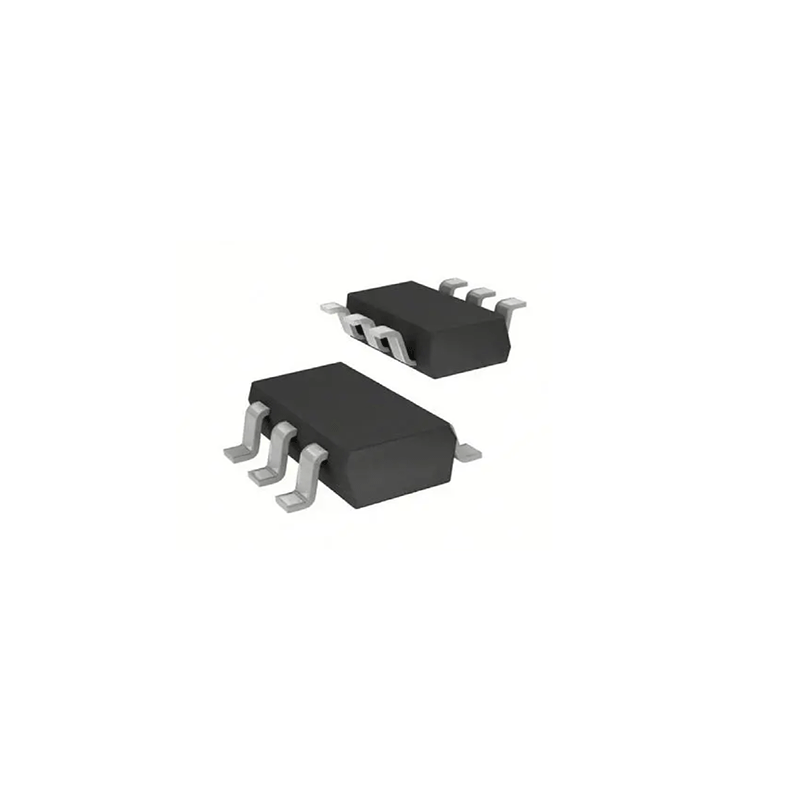

SSP9459
The SSP9459 is a monolithic, step-down, switch-mode converter with a built-in power MOSFET. It achieves a 0.5A peak-output current over a wide input supply range with excellent load and line regulation. Current-mode operation provides a fast transient response and eases loop stabilization.
The wide input range(4.5V to 60V) provides high efficiency output of 0.5A current, Low shutdown mode quiescent current of 0.1μA is suitable for battery-powered applications.
Fault condition protections include cycle-by-cycle current limiting and thermal shutdown.

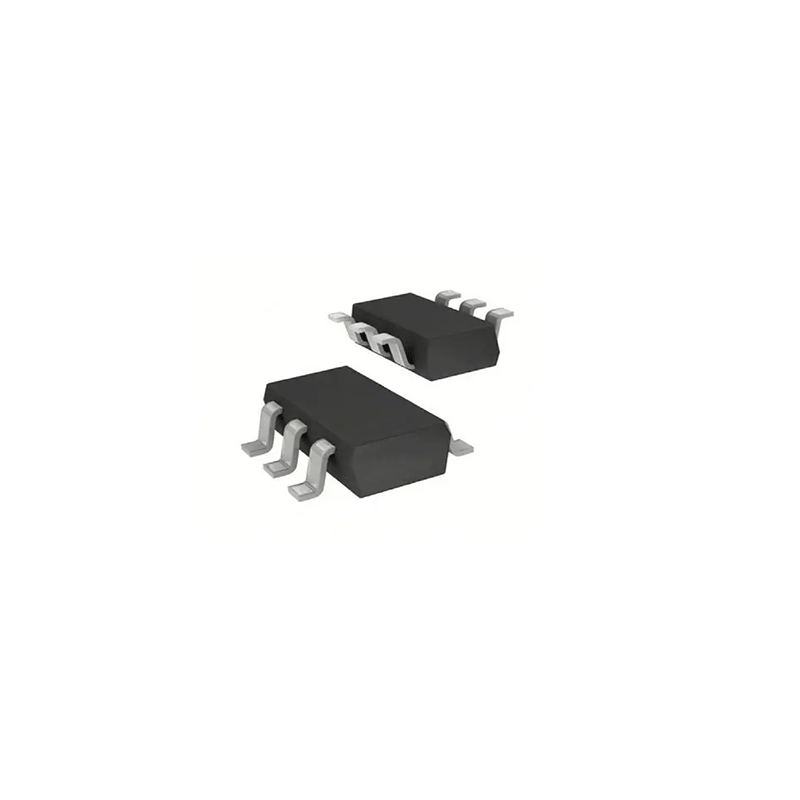

H9108
The H9108 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 2A continuous output current over a wide input supply range, with excellent load and line regulation.The H9108 requires a minimal number of readily available, external components and is available in a space saving
SOT23-6 package .
H9008
The H9008 is a high-efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version. Supply current with no load is 40uA and drops to <1uA in shutdown. The 2.5V to 5.5V input voltage range makes the H9008 ideally suited for single Li-Ion battery powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM/PFM mode operation provides very low output ripple voltage for noise sensitive applications.Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. Low output voltages are easily supported with the 0.6V feedback reference voltage. The H9008 requires a minimal number of readily available, external components and is available in a space saving SOT23-5 package.
