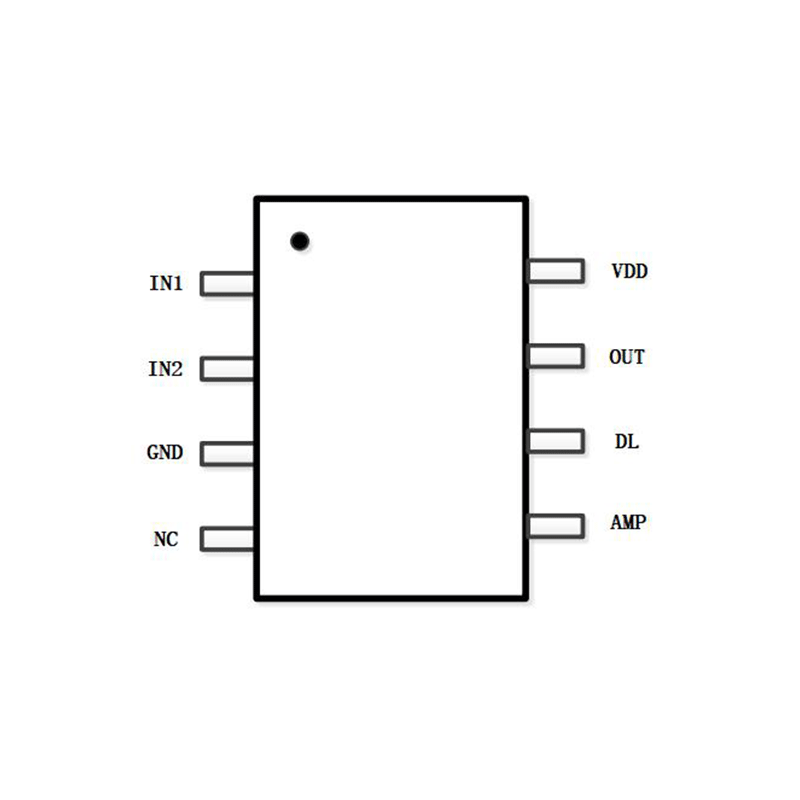

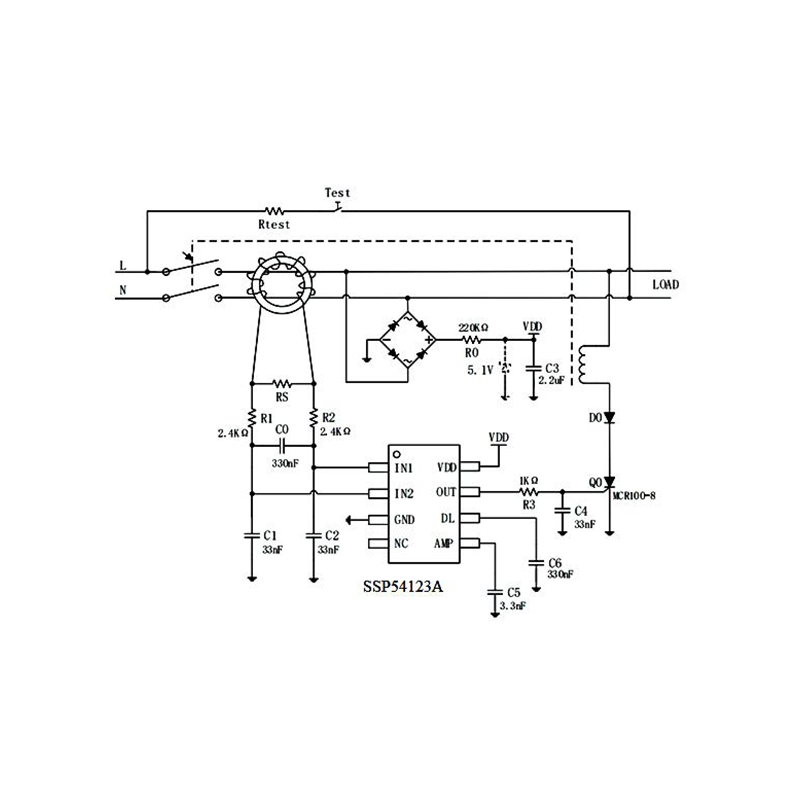

Absolute Maximum Ratings
Unless otherwise specified，Tamb= 25℃
| Parameter | Value | Unit | |
| Min | Max | ||
| Operating Temperature | -20 | +85 | ℃ |
| Storage Temperature | -55 | +150 | ℃ |
| Voltage at any pin to ground | -0.8 | +6.5 | V |
| Operating voltage | / | 8.0 | V |
| Operating current | / | 8.0 | mA |
Electrical Characteristics
Unless otherwise specified， Tamb= 25℃
| Parameter
| Symbol | Conditions | Test Circuits | Recommended Value | Unit | ||
| Min | Typ | Max | |||||
| Supply Current | I1 | Vs=5V | 1 | / | / | 2.6 | mA |
| Supply Voltage | Vdd | Vs=5V | 2 | 4.7 | 4.8 | 4.9 | V |
| PIN6 Output high current | I3 | Vs=5.5V, Vin1-Vin2=30mV | 3 | 50 | / | 68 | μA |
| PIN6 Output low current | I4 | Vs=5.5V, Vin1~Vin2 shorted | 4 | 0.6 | / | 1.2 | μA |
| PIN7 Output high curren | I7 | Vs=5.5V, Vin1-Vin2=30mV | 5 | 2.0 | / | 2.5 | mA |
| PIN7 Output low level | Vo | Vs=5.5V,Vin1~Vin2 Short circuit，I6=50mA | 6 | / | / | 0.2 | V |
| Positive operating voltage | V+ | Vs=5.5V,Vin1-Vin2 (Note 1) | 7 | 4.5 | 5.1 | 5.7 | mV |
| Negative operating voltage | V- | Vs=5.5V,Vin1-Vin2 (Note 1) | 8 | 4.5 | 5.1 | 5.7 | mV |
| Latching time | TON | Vs=5.5V, Vin1-Vin2=30mV(Note 2) | 9 | 20 | / | / | ms |
Note 1: When the DC voltage V+/V- between Vin1 and Vin2 is less than 4.5mV, the OUT pin outputs a low level. When V+/V- is greater than 5.7mV, the OUT pin outputs a high level.
Note 2: TON is the duration of OUT output high level.
